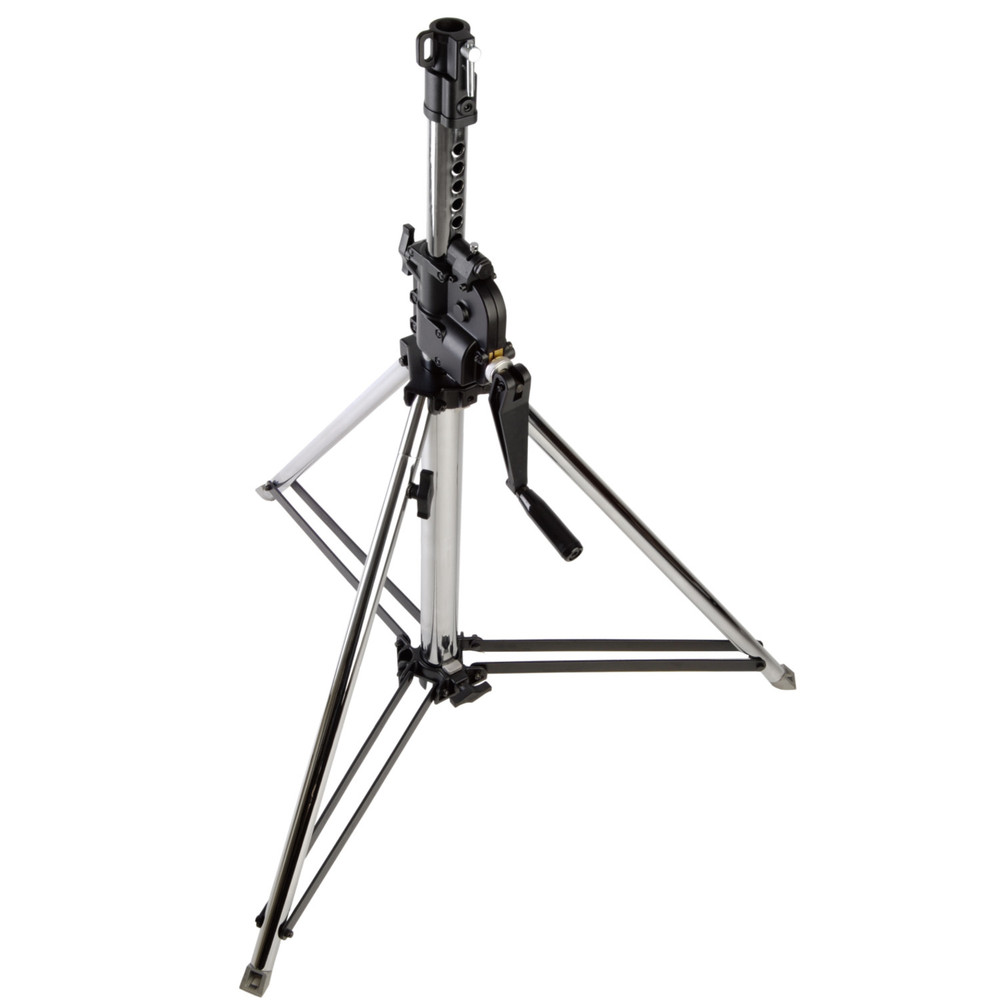

Kupo 12ft Steel Black Wind-Up Stand with Auto Self Locking Device
Kupo 12′ Steel Black Wind-Up Stand w/Auto Self Locking Device. 2 risers extend simultaneously and one handle turn provides 1.7″ (4.4cm) of lift. Black powder coated steel stand with gear column ensures easy lifting and lowering of your light.
- 12′ Wind-up Stand for lights up to 66lbs.
- Easy Lock Position – The safety pin will auto insert to the tube when winding-up.
- Unlock Position – The inside spring will bring the safety pin back.
- By using the leveling leg the stand can be quickly leveled on uneven terrain.
- The crank handle folds back for travel. It also can be placed in between tripod legs to prevent the risers from falling accidentally if the lock is unexpectedly disengaged.
Description
Specifications
Weight: 50.56lb / 22.98kg
Color: Black
Leveling Leg: Yes
Product Height (in): 6.93in
Product Height (cm): 17.6cm
Product Length (in): 79.37in
Product Length (cm): 201.6cm
Product Width (in): 9.49in
Product Width (cm): 24.1cm
Product Weight (lb): 50.56lb
Product Weight (kg): 22.98kg
Maximum Payload Capacity (lb): 66.14lb
Maximum Payload Capacity (kg): 30.0kg
Maximum Extension (in): 149.7in
Maximum Extension (cm): 380.0cm
Riser 1 Diameter (in): 2.17in
Riser 1 Diameter (mm): 55.0mm
Riser 2 Diameter (in): 1.77in
Riser 2 Diameter (mm): 45.0mm
Riser 3 Diameter (in): 1.5in
Riser 3 Diameter (mm): 38.0mm
Stand Adapter Type: Universal
Footprint Diameter (in): 50.4in
Footprint Diameter (cm): 128.0cm
Leg Diameter (in): 1.18in
Leg Diameter (mm): 30.0mm
Primary Material: Steel
Secondary Material: Aluminum
Warranty: Limited Two-Year Warranty
Closed Length (in): 71.3in
Closed Length (cm): 181.0cm
Fixed Stand Adapter: Triple Function Universal Head with 1/8″ (28mm) and 5/8″ (16mm) Receivers with Multi-Direction 5/8″ (16mm) Stud
Risers: 2
Suggested Caster: KC-100 / KS940912
Removable Stand Adapter: No
Sections: 3
