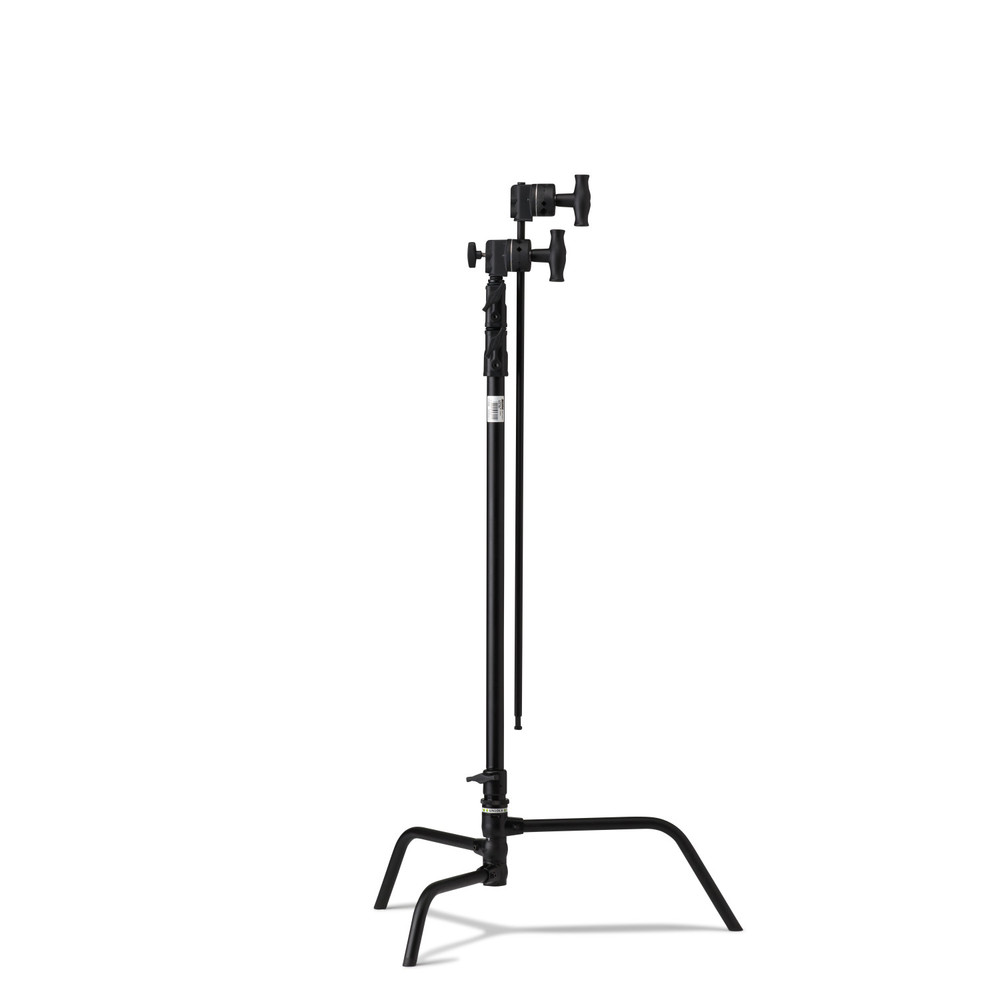

Kupo 40in Master C-Stand with Turtle Base Kit – Black

The Kupo Master C Stand with Turtle Base features a unique innovation in the world of C Stands that enables the still or moving image-maker of any skill level to open and collapse the legs of the base in under two seconds! The Master C Stand is outfitted with a patented spring ring locking system that removes all tension from the legs so that gravity can do the work for you. A turtle base is an industry term where the riser section can be quickly removed from the base for easy transportation and the base can be used with a stand adapter for a low mounting position. The 40″ Grip Arm with Hex Stud is a 2- 1/2″ grip head mounted on the end of a 40″ piece of steel tubing 5/8″ (16mm) in diameter and finished with a faceted hex stud to keep lighting fixtures in position when they are placed on the end of the arm. The surface of the tubing is painstakingly machined to create a rough texture to ensure a non-slip surface. The 2-1/2″ grip head consists of a pair of rotating aluminum discs attached to a 5/8″ (16 mm) receiver. The discs have four different sized V shaped jaws to accept any accessory with a 5/8″, 1/2″, 3/8″, or 1/4″ mounting stud or tubing. The V shaped jaws have teeth that grab whatever is mounted between the plates securely. The 2-1/2″ grip head features an oversized ergonomic T handle and dedicated roller bearings designed for maximum torque.

  • Includes 40in Master C-Stand with Turtle Base, One 2.5″ Grip Head, and One 40″ Grip Arm with a 5/8″ hex stud to keep lighting fixtures securely in position
  • Unique Patented innovative spring ring locking system allowing for easy set-up and take down.
  • Base is five times stronger than aluminum
  • Easily remove the column and attach to the Kupo Runway Base to create a strong sturdy and safe rolling stand.
  • Fitted with captive locking t-knobs on the column.

SKU: KS704811 Category:

Description

Specifications

Weight: 21.36lb / 9.71kg
Color: Black
Product Height (in): 2.76in
Product Height (cm): 7.0cm
Product Length (in): 52.87in
Product Length (cm): 134.3cm
Product Width (in): 17.32in
Product Width (cm): 44.0cm
Product Weight (lb): 21.36lb
Product Weight (kg): 9.71kg
Maximum Payload Capacity (lb): 22.05lb
Maximum Payload Capacity (kg): 10.0kg
Maximum Extension (in): 116.14in
Maximum Extension (cm): 295.0cm
Riser 1 Diameter (in): 1.38in
Riser 1 Diameter (mm): 35.0mm
Riser 2 Diameter (in): 1.18in
Riser 2 Diameter (mm): 30.0mm
Riser 3 Diameter (in): 0.98in
Riser 3 Diameter (mm): 25.0mm
Stand Adapter Type: Welded
Footprint Diameter (in): 37.4in
Footprint Diameter (cm): 95.0cm
Primary Material: Steel
Secondary Material: Aluminum
Warranty: Limited Two-Year Warranty
Closed Length (in): 52.7in
Closed Length (cm): 134.0cm
Fixed Stand Adapter: Baby 5/8″ (16mm)
Sections: 3
