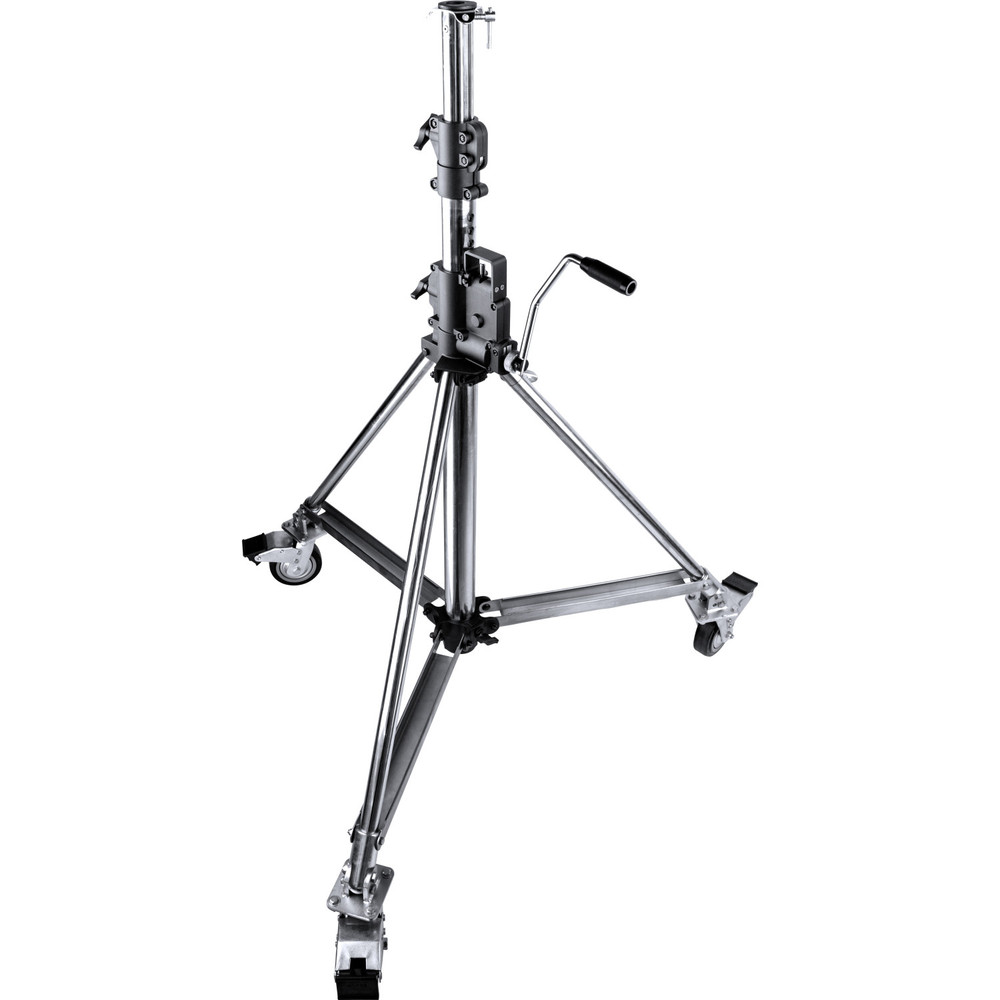

Kupo Heavy Duty Wind-Up Low Base Steel Stand

Features a mechanical lifting assist with a hand-crank and an auto-locking safety system that enables a single operator to lift heavy loads with precision and confidence. The center tube, legs and U-shape struts are constructed from stainless steel with the top two chrome plated steel sections for extra stability. For safety loading weight up to 176.3lbs (80kg) in a small 51.2” footprint.

Constructed of Chrome plated steel (Top 2 section), stainless steel (center tube & legs)
Max height: 106″ (270cm) / Max load: 176.3lbs (80kg)
Features a mechanical lifting assist with a hand-crank enables a single operator to lift heavy loads
Patented auto self-locking device prevent from unexpected drop-off
Low working height for easier operation

Description
Reviews (0)

Description

Specifications

Weight: 68.09lb / 30.95kg
Color: Silver
Leveling Leg: Yes
Product Height (in): 7.87in
Product Height (cm): 20.0cm
Product Length (in): 56.3in
Product Length (cm): 143.0cm
Product Width (in): 11.02in
Product Width (cm): 28.0cm
Product Weight (lb): 68.09lb
Product Weight (kg): 30.95kg
Maximum Payload Capacity (lb): 176.3lb
Maximum Payload Capacity (kg): 80.0kg
Maximum Extension (in): 106.0in
Maximum Extension (cm): 270.0cm
Riser 1 Diameter (in): 1.97in
Riser 1 Diameter (mm): 50.0mm
Riser 2 Diameter (in): 2.36in
Riser 2 Diameter (mm): 60.0mm
Riser 3 Diameter (in): 2.75in
Riser 3 Diameter (mm): 70.0mm
Stand Adapter Type: Junior Receiver
Footprint Diameter (in): 51.2in
Footprint Diameter (cm): 130.0cm
Leg Diameter (in): 1.38in
Leg Diameter (mm): 35.0mm
Primary Material: Steel
Warranty: Limited Two-Year Warranty
Closed Length (in): 61.4in
Closed Length (cm): 156.0cm
Fixed Stand Adapter: Yes
Risers: 2
Suggested Caster: KC-150 / KS941312
Removable Stand Adapter: No
Sections: 3
