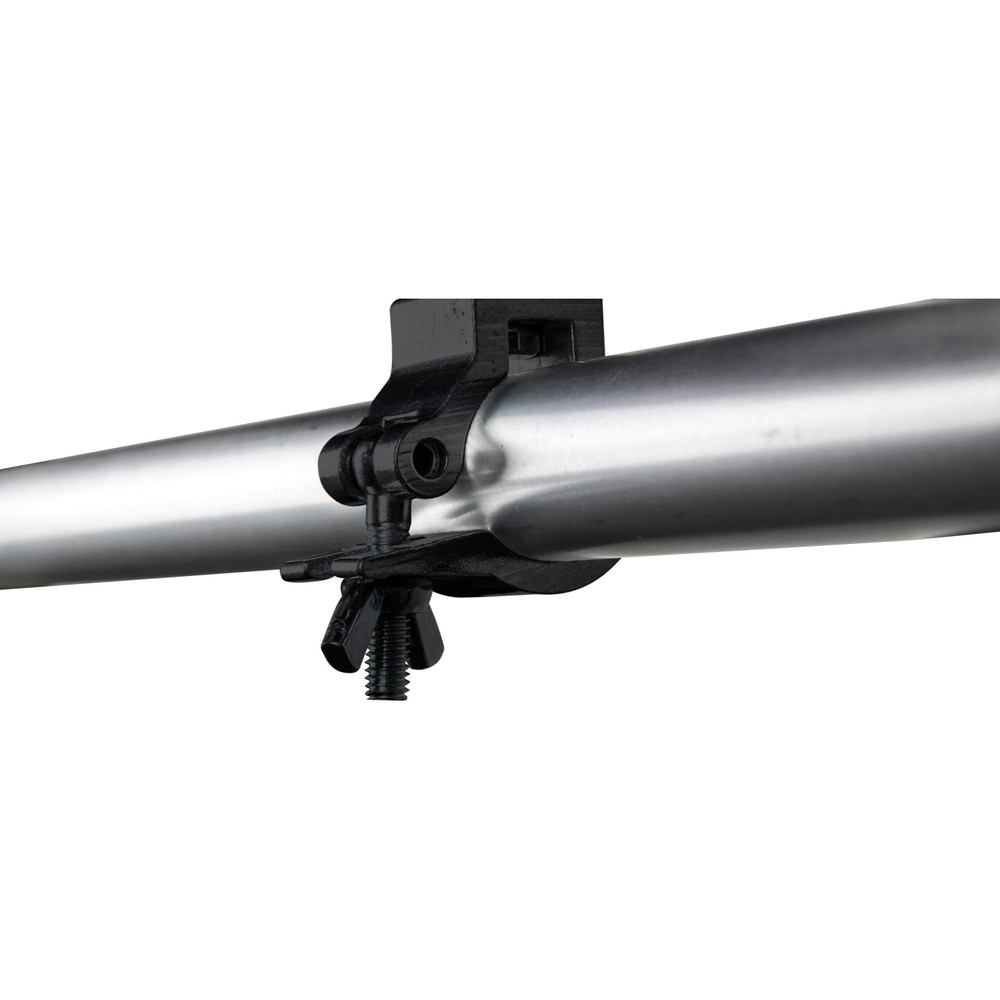

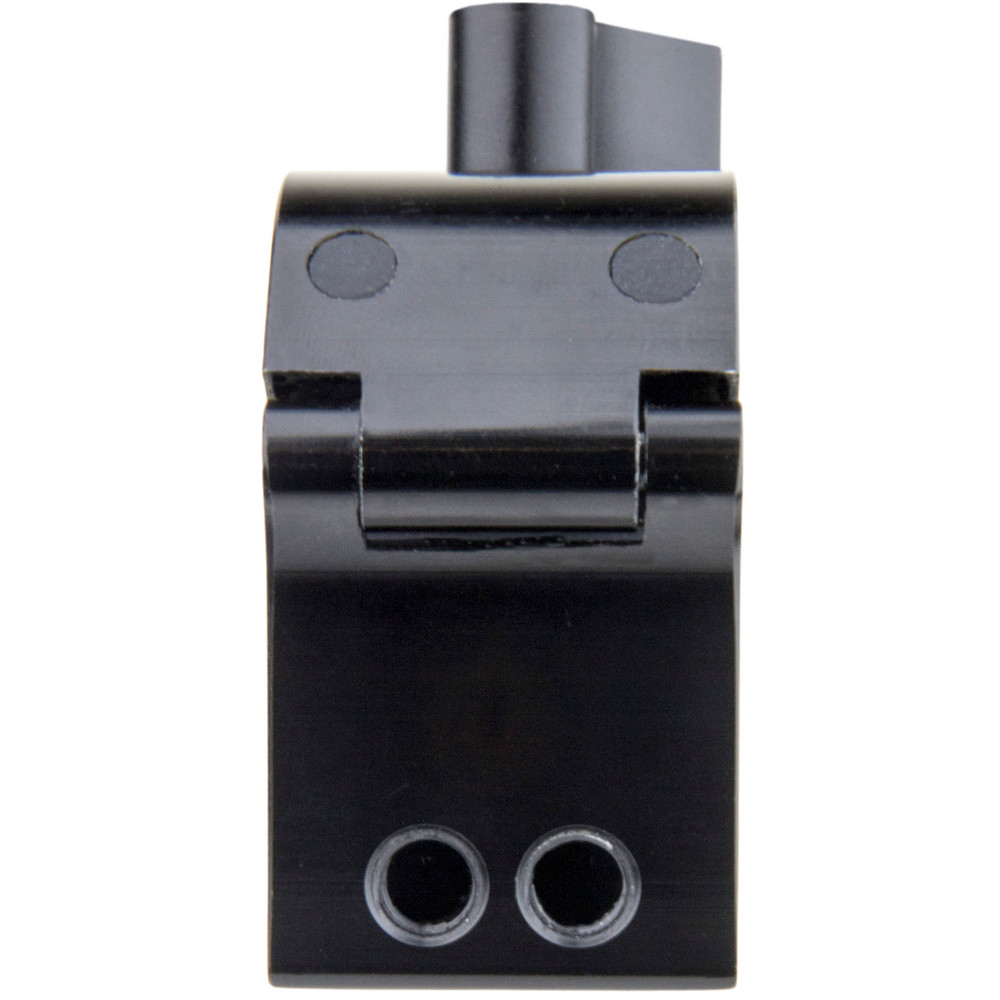

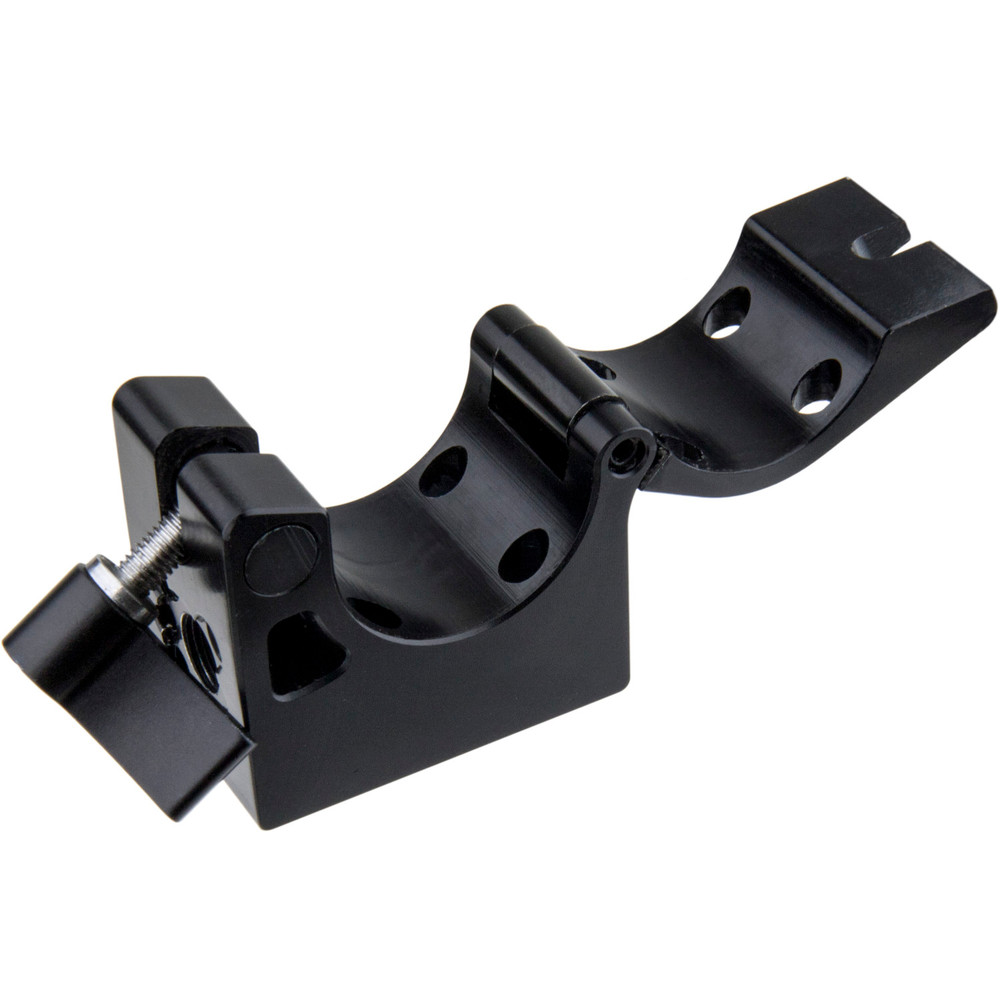

Kupo Mounting Coupler – Dia. 25-30mm
This coupler features a removable rubber pad inside the coupler which allows it to fit any tube size or Gimbal handlebar that comes with a 25mm to 30mm diameter. There are also various threaded holes including 3/8in-16 (2 pcs), 1/4in-20 (7 pcs) and M4 (pcs) on the main base to accept a wide range of adapters, grip accessories, cameras, lights, and monitor arm.
- Accepts a wide range of adapters, grip accessories, cameras, lights or monitor arm…etc

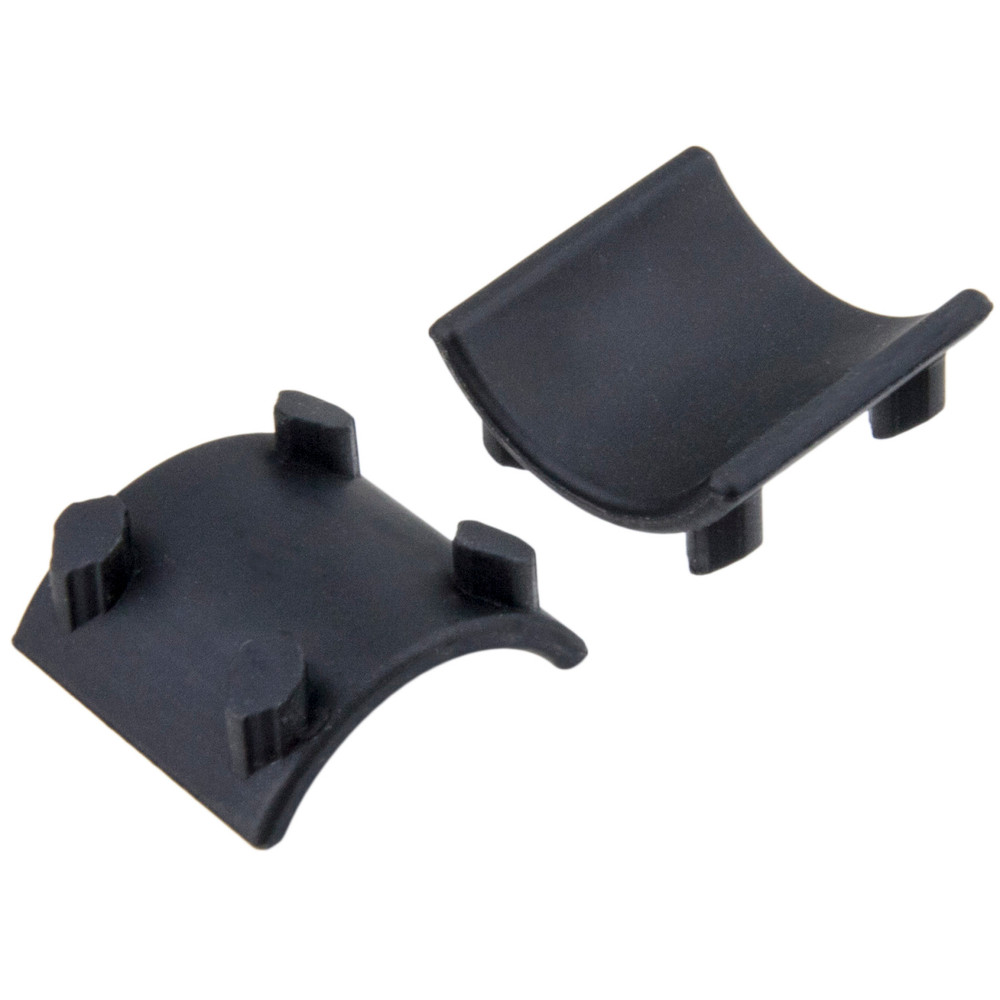

- Features a removable rubber pad inside which allows it to fit any tube size or Gimbal handlebar that comes with dia.25mm or 30mm

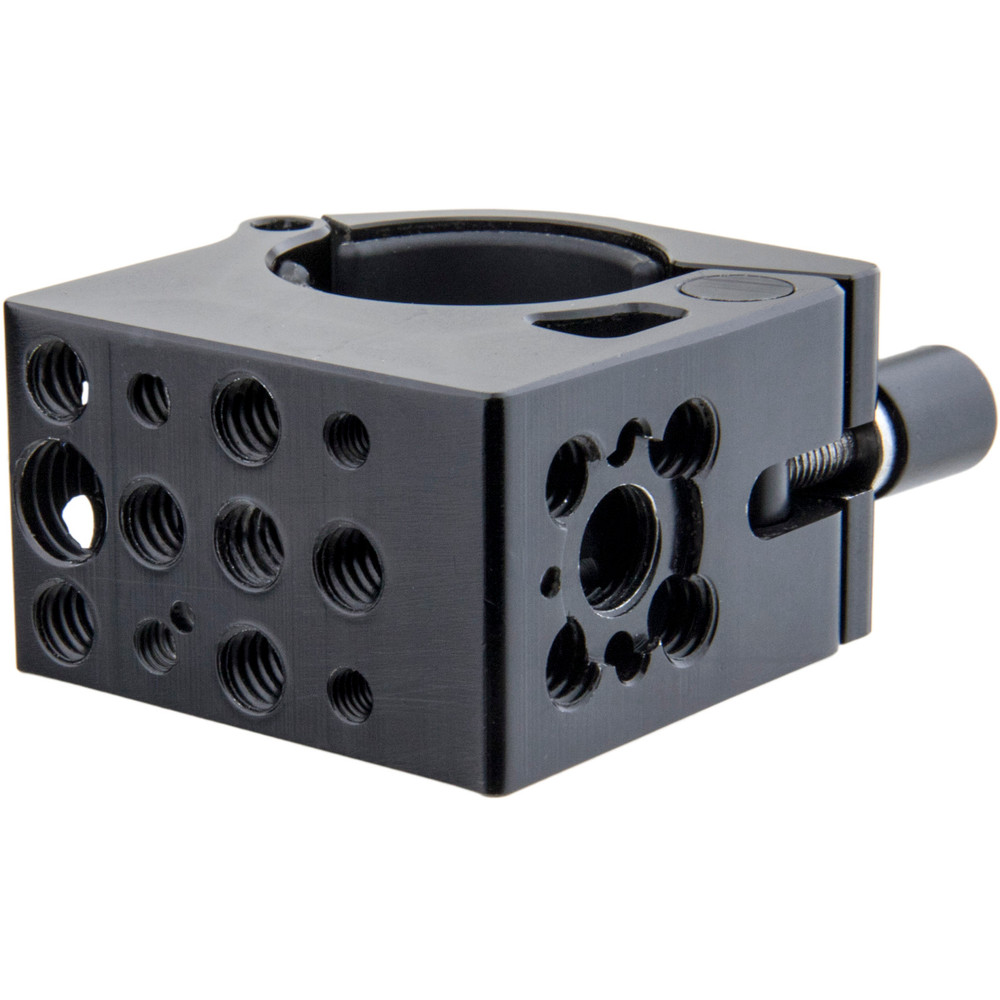

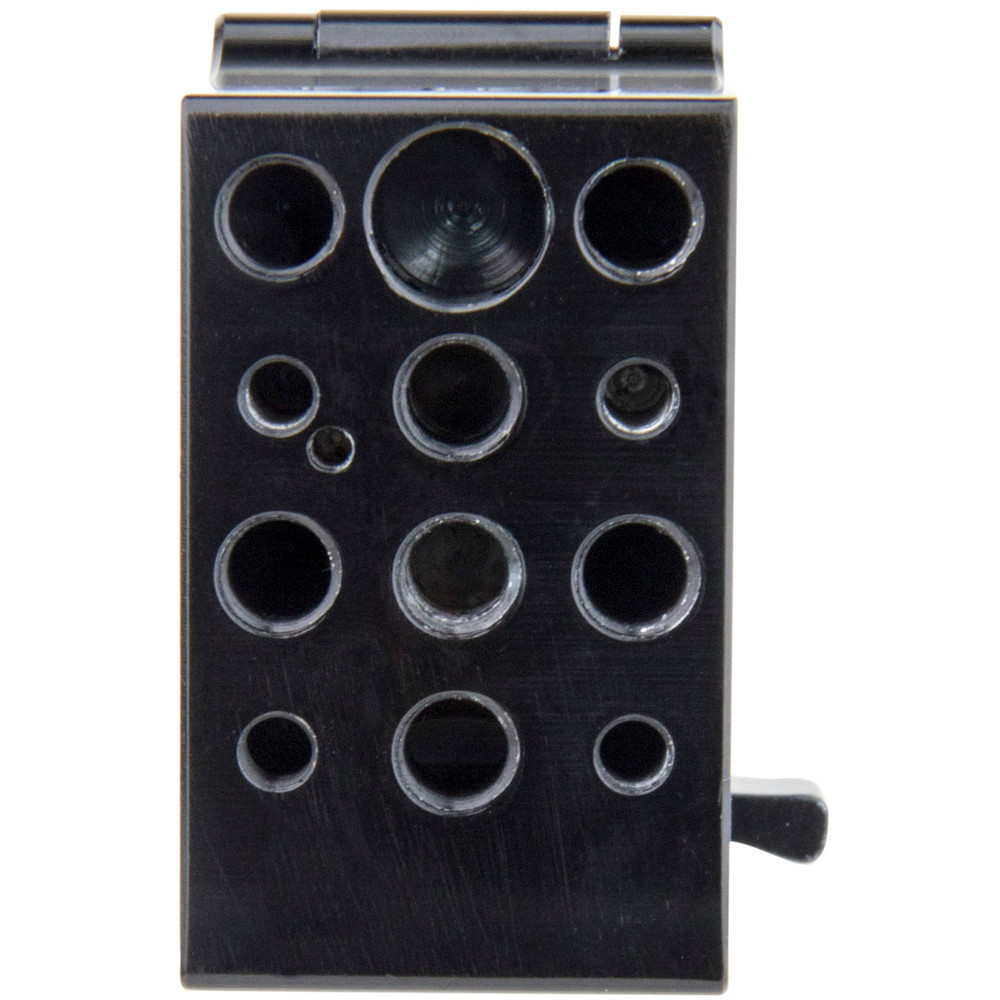

- Various threaded holes including 3/8in-16 (2pcs), 1/4in-20 (7pcs), and M4 (4pcs) on the main base for mounting accessories
- Also includes a 3/8in-16 with Arri located holes on side of coupler
Description
Specifications
Weight: 0.29lb / 0.13kg
Color: Black
Product Height (in): 1.1in
Product Height (cm): 2.8cm
Product Length (in): 2.44in
Product Length (cm): 6.2cm
Product Width (in): 1.93in
Product Width (cm): 4.9cm
Product Weight (lb): 0.29lb
Product Weight (kg): 0.13kg
Maximum Jaw Diameter (in): 1.18in
Minimum Jaw Diameter (in): 0.98in
Maximum Jaw Diameter (mm): 30.0mm
Minimum Jaw Diameter (mm): 25.0mm
Stand Adapter Type: 3/8in-16 female threaded (2pcs) and 1/4in-20 female threaded (7pcs) and M4 female threaded (4pcs)
Primary Material: Aluminum
Warranty: Limited Two-Year Warranty
