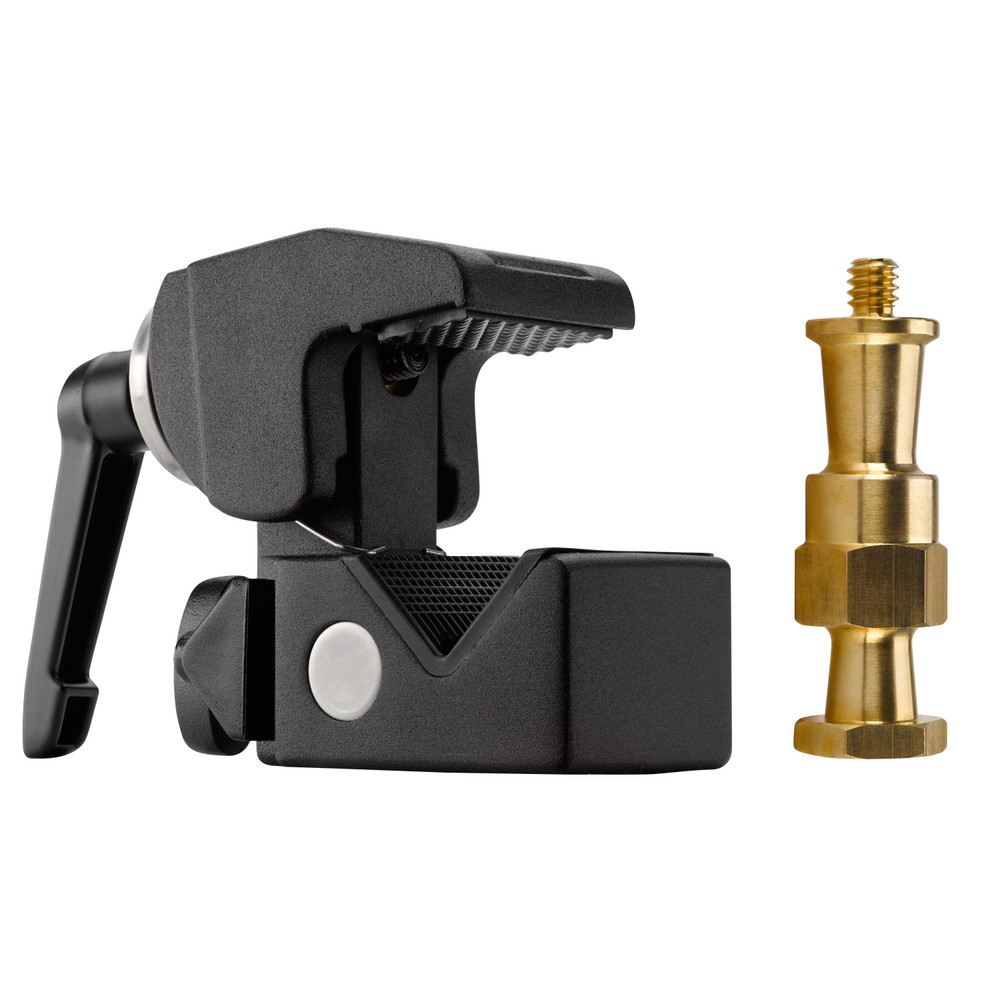

Kupo Convi Clamp Kit

This kit comes complete with a Black Convi Clamp (KG701511) and a 1/4″-20 Hex Stud (KG002612). The Convi Clamp is more than just an amazing clamp, it’s the foundation of an entire grip system. The all-metal Convi Clamp is made from a lightweight alloy that will support loads of up to 44lbs (20kg). It features a hexagonal receiver that accepts dozens of Convi accessories. The receiver features a spring locking safety system to ensure that the Convi accessory won’t separate from the clamp if the locking screw loosens unexpectedly. The Convi Clamp has a jaw that will extend from 0.2″-2.0″ (5-51mm) in diameter. It also features a saddle to securely mount it on flat surfaces. This clamp has a ratcheted handle that allows you to reposition it should you not have clearance to rotate the handle in a complete circle to tighten or loosen it.

  • Complete kit that includes a 1/4-20″ Hex Stud
  • Supports loads of up to 44lbs (20kKg)
  • Features a hexagonal receiver that works with dozens of Convi accessories
  • Has a ratcheted handle that allows the user to rotate it in a complete circle to tighten or loosen in tight operating spaces
  • Limited two-year warranty

SKU: KG701611 Categories: ,

Description

Specifications

Weight: 6lb / 2.72kg
Color: Black
Product Height (in): 1.73in
Product Height (cm): 4.4cm
Product Length (in): 36.73in
Product Length (cm): 93.3cm
Product Width (in): 3.31in
Product Width (cm): 8.4cm
Product Weight (lb): 6.0lb
Product Weight (kg): 2.72kg
Maximum Payload Capacity (lb): 44.09lb
Maximum Payload Capacity (kg): 20.0kg
Maximum Jaw Diameter (in): 2.01in
Minimum Jaw Diameter (in): 0.2in
Maximum Jaw Diameter (mm): 51.0mm
Minimum Jaw Diameter (mm): 5.0mm
Primary Material: Black Lightweight Alloy
Secondary Material: Stainless Steel Bolts
Warranty: Limited Two-Year Warranty
